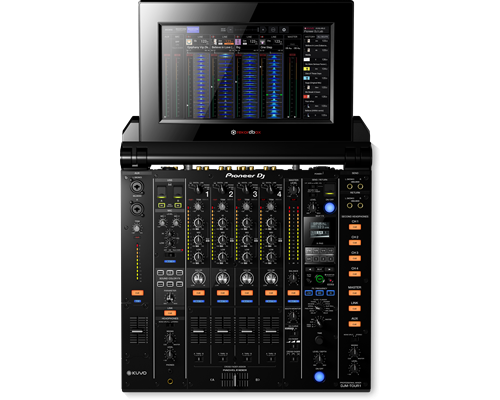

PIONEER DJ DJM-TOUR1 Mixer cu 4 canale pentru sistem TOUR, cu ecran tactil pliabil

MIDI Control Full assignable
MIDI controls ProDJ Link Yes P-LOCK Fader Caps Yes
Auto Standby Yes DVS Control rekordbox dvs (not included)

What's in the box

DJM-TOUR1 Power cord USB cable Display shade Operating Instructions (Quick Start Guide)

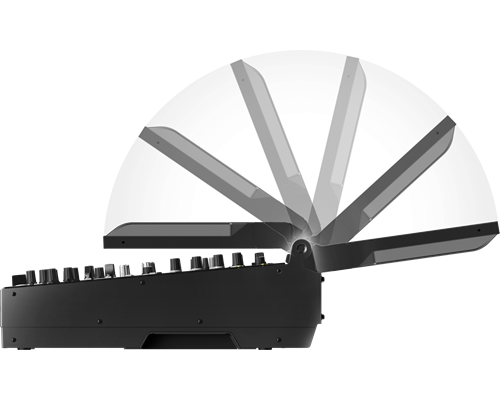

Specifications Dimensions (with fold-out screen)

When upper display part is closed (W x D x H): 445.2 x 451.6 x 179.1 mm

When upper display part is upright at 90 degrees (W x D x H): 445.2 x 457.8 x 418 mm

When upper display part is fully open (W x D x H): 445.2 x 694.5 x 203.1 mm Weight 35.49 lb

Frequency Range 20 - 40000 Hz Sampling Rate 96 kHz
A/D Converter 24 bit D/A Converter 32 bit S/N Ratio
Line 105 dB S/N Ratio
Phono 88 dB S/N Ratio
Mic 79 dB Distortion < 0.005 % (LINE)

Channels EQ/ISO 3 band EQ/ISO Range Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB / 3-band isolator: -∞ ~ +6 dB

Performance Control Channels 4 Sound Color FX Crush Dub Echo Filter Noise Sweep Space Beat FX Delay Echo Filter Helix Phaser Ping Pong Pitch Slip Roll Spiral Reverb Roll Trans Vinyl Brake FX Frequency Yes X-PAD Yes rekordbox Quantize Yes Crossfader Crossfader Type Magvel Fader CURVE Assignable Yes Fader Curve

3 Mic Mic Connection XLR / 1/4-inch Jack Combo 1/4-inch TRS Jack Talkover 3 Position Switch Talkover Attenuator Yes

Terminals Inputs 4 Digital (Coaxial) 4 CD/LINE (RCA) 4 PHONO (RCA) 1 AUX (XLR, 1/4 inch TRS Jack) 2 MIC (XLR/TRS Jack Combo, 1/4 inch TRS Jack) 1 Word Clock (BNC) Send/Return 1 SEND (1/4-inch TS jack) 1 RETURN (1/4-inch TS jack) LAN 6 USB 2 USB B ports 1 USB A port Outputs 2 MASTER (XLR, RCA) 1 BOOTH (XLR) 2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack) 1 HEADPHONE MONITOR (1/4 inch Jack) 1 REC OUT (RCA) 1 DIGITAL (AES/EBU)
