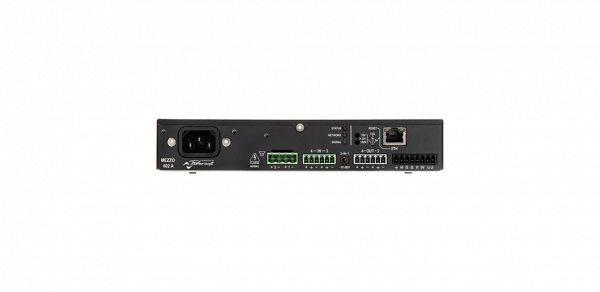

![Powersoft Mezzo 602AD (Dante) [2]](https://gomagcdn.ro/domains/cristechnic.ro/files/product/original/Mezzo602A_gallery-cardL_rear-1-1024x500-1213-5410.png "Powersoft Mezzo 602AD (Dante) [2]")
![Powersoft Mezzo 602AD (Dante) [0]](https://gomagcdn.ro/domains/cristechnic.ro/files/product/medium/Mezzo602A_gallery-cardL_front-1-1024x500-1213-2373.png "Powersoft Mezzo 602AD (Dante) [0]")
![Powersoft Mezzo 602AD (Dante) [1]](https://gomagcdn.ro/domains/cristechnic.ro/files/product/medium/Mezzo602A_gallery-cardL_rear-1-1024x500-1213-5410.png "Powersoft Mezzo 602AD (Dante) [1]")
Mezzo 602 AD heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Ultimately flexible, "AD" versions of Mezzo offer all the remote control and monitoring functions of the "A" versions, further extending networking capabilities with Dante and AES67. The small form factor allows it to be mounted anywhere thanks to the included mounting kit. Two channel versions of Mezzo also feature 2 line level outputs, furtherly extending routing options.
Data de livrare: Sambata, 01.06.2024
Cod Produs:
C1213
Ai nevoie de ajutor?
+40212317631
- Descriere
- Review-uri (0)
Multiple mounting options
Auto-Setup
Power sharing
Full remote control via 3rd party controls
Dante™/AES67
Auto-Setup
Power sharing
Full remote control via 3rd party controls
Dante™/AES67
| Number of channels | 2 (+2 line level outputs) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Output power | Single channel mode | Distributed line* | ||||||||
| 2 Ω | 4 Ω | 8 Ω | 16 Ω | 70V | 100V | |||||
| 200 W | 300 W | 300 W | 300 W | 300 W | 250 W | |||||
| Max output voltage / current | 142 Vpeak / 15.6 Apeak | |||||||||
| AC Main Power | ||||||||||
| Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) | |||||||||
| Nominal power requirement | 100-240 V ±10%, 50-60 Hz | |||||||||
| Operating voltage | 90 V - 264 V | |||||||||
| Power consuption** | 115 V | 230 V | ||||||||
| Standby | 5 W | 5 W | ||||||||
| Idle | 17 W | 17 W | ||||||||
| AUDIO | ||||||||||
| Frequency response | 20 Hz - 20 kHz (±0.5 dB) @ 1 W, 8 Ω | |||||||||
| S/N ratio | >105 dB (20 Hz - 20 kHz, A weighted) | |||||||||
| Crosstalk separation | -60 dB @ 1kHz | |||||||||
| Input impedance | 10 kΩ to ground / 20 kΩ balanced | |||||||||
| DSP | ||||||||||
| AD Converter | 24 Bit @ 48 kHz 125 dB-A Dynamic Range - 0.00x % THD+N | |||||||||
| DA Converter | 24 Bit @ 48 kHz 115 dB-A Dynamic Range - 0.00x % THD+N | |||||||||
| Internal precision | 32 bit floating point | |||||||||
| Latency | 2.5 ms fixed latency architecture | |||||||||
| Input equalizer | Parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop | |||||||||
| Crossover | Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 24 dB/oct (IIR) | |||||||||
| Delay | 80 ms (per output) for time alignment | |||||||||
| Input EQ | ||||||||||
| Output EQ | ||||||||||
| Limiters | RMS voltage, Peak limiter | |||||||||
| Construction | ||||||||||
| Dimensions (L x H x W) | 210 mm x 40 mm x 275 mm (8.3 in x 1.6 in x 10.8 in) | |||||||||
