This amplifier platform is ideal for medium to large sized installations that require high power outputs to drive subs and multiple speakers. Duecanali 4808 DSP+D offers Powersoft’s renowned reliability and power density in a light, compact unit.

Built in state of the art DSP, in conjunction with Dante, allows flexibility during installation and extensive controllability.

Precomanda

Data de livrare: Sambata, 01.06.2024

Limita stoc

Precomanda

Cod Produs: C1258 Ai nevoie de ajutor? +40212317631

Adauga la Favorite

SERVICE PROPRIU Asigurăm service și mentenanță pentru toate produsele comercializate de noi!

TRANSPORT GRATUIT Gratuit la comenzi mai mari de 399 ron

25 ANI EXPERIENTA Avem peste 25 de ani de experienta si proiecte validate pe piata romaneasca.

Descriere
Video (1)
Review-uri (0)

Power supply

Universal switch mode power supply up to 400VAC tolerant with Power Factor Correction
Patented output filter with ripple cancellation network
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket

Protections
Fully protected circuit design with:

Ac protection: shut down power supply when AC mains voltage is outside operating range
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output
Thermal protection: output stages operating temperature up to 80 °C (176 °F)
Temperature controlled continous variable speed fan, front to back airflow

General

Fixed frequency switchmode output stage for high grade sound accuracy
Compact 1 RU for reduced rack cost and space
Light weight - for easier racking and shipping: 7 kg (15.4 lbs)
Standard Phoenix connectors: analog and digital input, audio outputs, alarms and GPIO
Remotely dimmable inputs per channel

Loudspeaker system configuration

Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
Switchable 35Hz / 70Hz high pass filter per channel
Mixed configuration with Lo-Z/Hi-Z systems possible
Bridged mode low impedance per channel pair

Alarms and GPI/O

General Purpose Input/Output alarm interfaces:
- dangerous DC in the output power signal
- thermal stress
Configurable alarm contact NC/NO per channel
Remote ON/OFF switch

Digital Signal Processing

TI C6000 DSP platform
AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture
Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
Delay up to 100 ms for time alignment
Active DampingControl™ for cable compensation
Peak, RMS voltage, RMS current, TruePower™ limiters

Remote management

Control and monitoring through Armonía Pro Audio Suite™
Dedicated Web App

Remote Control & Monitoring

Via Software:
- Attenuation (from 0 dB to 26 dB)
- Max output voltage
- Output and gain reduction metering
- Diagnostics (temperature, fans, …)
Via Hardware:
- Attenuation (from 0 dB to 26 dB)
- High Pass Filter (35 Hz, 70 Hz)
- LoZ/HiZ/70V/100V output selection
- Gain (from 26 dB to 35 dB)

Number of channels

Output power

Single channel mode

Distributed line*

Bridge mode

2 Ω

4 Ω

8 Ω

70V

100V

4 Ω

8 Ω

3000 W

2400 W

1250 W

2400 W

6000W

4800W

Max output voltage / current

142 Vpeak / 80 Apeak

AC Main Power

Power supply

Universal, regulated switch mode with PFC

Nominal power requirement

100-240 V ±10%, 50-60 Hz

Operating voltage

90 V - 264 V

Power consuption**

115 V

230 V

Idle

32.5 W

0.31 A

32.8 W

0.30 A

1/8 of max output power @ 4 Ω

780 W

7.0 A

755 W

3.9 A

Thermal

Operating temperature range

0° - 45° C - 32° - 113° F

Thermal dissipation**

115 V

230 V

Idle

111 BTU/h

28.0 kcal/h

112 BTU/h

28.2 kcal/h

1/8 of max output power @ 4 Ω

613 BTU/h

154.5 kcal/h

528 BTU/h

133.1 kcal/h

AUDIO

Gain	26 dB	29 dB	32 dB	35 dB
Input sensitivity	5.03 V	3.56 V	2.52 V	1.79 V
Max input level	20 dBu	20 dBu	20 dBu	20 dBu

Frequency response

20 Hz - 20 kHz (±0.5 dB) @ 1 W, 8 Ω or (±2.5 dB) @ 32W, 70V lines / 65 W, 100V lines

S/N ratio

> 111 dB (20 Hz - 20 kHz, A weighted)

Crosstalk separation

< 70 dB @ 1kHz

THD+N

< 0.1% from 0.1 W to full power (typically <0.05%)

IMD

< 0.05% from 0.1 W to full power (typically <0.05%)

Input impedance

20 kΩ balanced

Slew rate

> 50 V/μs @ 8Ω, input filter bypassed

Damping factor

> 500 @ 20-100 Hz (Lo-Z)

DSP

AD Converter

24bit @ 48 kHz Tandem® architecture, 125 dB dynamic range

DA Converter

24bit @ 48 kHz Tandem® architecture, 117 dB dynamic range

Internal precision

32 bit floating point

Latency

2.5 ms fixed latency architecture

Input equalizer

Raised-cosine, custom FIR, param. IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop hi/lo-pass

Output equalizer

Linear phase (FIR), hybrid (FIR-IIR), Bessel: 6 dB/oct to 48 dB/oct (IIR)

Crossover

Butterworth, Linkwitz-Riley

Delay

up to 100 ms per output

Input EQ

Output EQ

Limiters

Peak, RMS voltage, RMS current, TruePower™

Damping control

Active DampingControl™, LiveImpedance™ measurement

Front panel

Indicators and Controllers

1 x LED - Status
1 x LED - Over-temperature protection
1 x LED bar - Signal level + CLIP
1 x LED bar - Signal level and over-temperature protection
1 x Knob - Level attenuator (continuous)
1 x Push-button - Setting operating parameters
1 x Push-button - Preset selector
1 x DIP switch - Toggle energy save on/off per channel pair
1 x Power switch -

Connectors

AC main

1 x IEC C20 connector - 20 A max (region-specific power cord provided)

Audio signal input

2 x 3 pin Phoenix MC 1.5/3-ST-3.81 - Signal input – MAIN

Alarm

1 x 12 pin Phoenix MC 1.5/12-ST-3.81 - Alarm connector

Remote command

1 x 4 pin Phoenix MC 1.5/4-ST-3.81 - Remote on/off switch and aux voltage

Network/data

1 x USB plug - USB connection
1 x Rj45 socket - RS485 data connection (non-DSP version)
1 x Rj45 socket - DANTE®

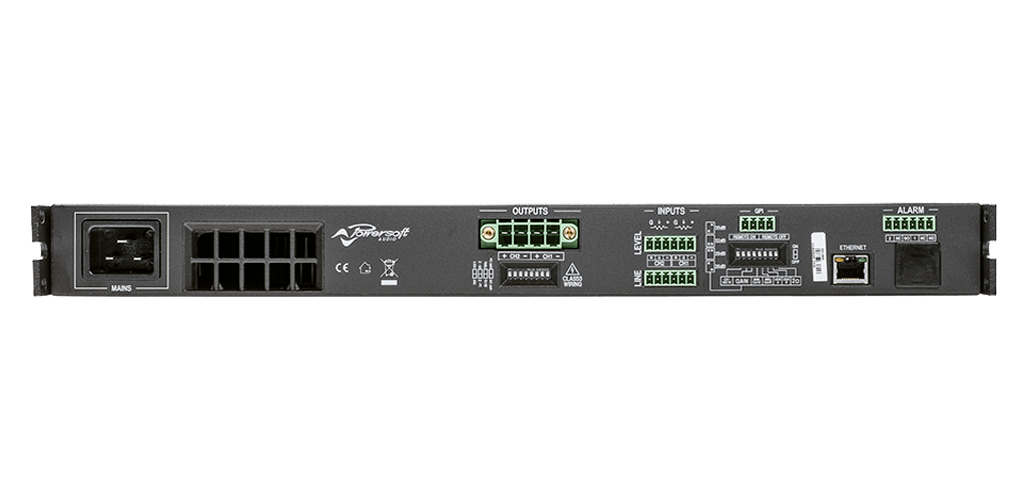

Rear panel

Indicators and Controllers

1 x DIP switch - Toggle lo/hi impedance connection
1 x DIP switch - Toggle 70V/100V distributed line nominal voltage
1 x DIP switch - Toggle High Pass Filter
1 x DIP switch - Toggle 35Hz/70Hz HPF cutting frequency

Audio

Amplifier

Highly efficient Powersoft Class D circuitry

Communication

Wired

Ethernet 100 Mbit/s, PoE, via internal RJ45 port

Construction

Dimensions (L x H x W)

483 mm x 44.45 mm x 360 mm (19.0 in x 1.8 in x 14.2 in)

Weight

7 kg (15.4 lb)
