Powersoft Duecanali 1604 + DSP

Powersoft
10.466,00 Lei
Providing access to all functions yet easily set up, the Duecanali Series is versatile in use. Powersoft's legendary efficency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum.


The Duecanali 1604 is designed to work with lo-Z (from 2 Ω ) and with 70V/100V distributed lines: any mixed impedance output loads can be realized.

A fully integrated state-of-the-art DSP yields extensive system management functionality. In addition to sound shaping and limiter functions in unique Powersoft style, the DSP hardware and Armonía Pro Audio Suite™ software enable compliance with IEC 60849 for the crucial requirements of sound systems for emergency purposes.

Precomanda

Data de livrare: Sambata, 01.06.2024

Limita stoc
Precomanda
Cod Produs: C1252 Ai nevoie de ajutor? +40212317631
Adauga la Favorite Cere informatii
  • Descriere
  • Review-uri (0)

Power supply

  • Universal switch mode power supply up to 400VAC tolerant with Power Factor Correction
  • Patented output filter with ripple cancellation network
  • Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
  • Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket

Protections
Fully protected circuit design with:

  • Ac protection: shut down power supply when AC mains voltage is outside operating range
  • Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
  • VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
  • Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
  • Long term limiter: protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output
  • Thermal protection: output stages operating temperature up to 80 °C (176 °F)
  • Temperature controlled continous variable speed fan, front to back airflow

General

  • Fixed frequency switchmode output stage for high grade sound accuracy
  • Compact 1 RU for reduced rack cost and space
  • Light weight - for easier racking and shipping: 7 kg (15.4 lbs)
  • Standard Phoenix connectors: analog and digital input, audio outputs, alarms and GPIO
  • Remotely dimmable inputs per channel

Loudspeaker system configuration

  • Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
  • Switchable 35Hz / 70Hz high pass filter per channel
  • Mixed configuration with Lo-Z/Hi-Z systems possible
  • Bridged mode low impedance per channel pair

Alarms and GPI/O

  • General Purpose Input/Output alarm interfaces:
    • dangerous DC in the output power signal
    • thermal stress
  • Configurable alarm contact NC/NO per channel
  • Remote ON/OFF switch

Digital Signal Processing*

  • TI C6000 DSP platform
  • AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture
  • Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
  • Delay up to 100 ms for time alignment
  • Active DampingControl™ for cable compensation
  • Peak, RMS voltage, RMS current, TruePower™ limiters

Remote management

* = DSP+D version




Number of channels 2

Output power Single channel mode Distributed line* Bridge mode
  2 Ω 4 Ω 8 Ω   70V 100V 4 Ω 8 Ω
  1000 W 800 W 800 W   800 W 800 W 2000W 1600W
Max output voltage / current 115 Vpeak / 45 Apeak

AC Main Power
Power supply Universal, regulated switch mode with PFC
Nominal power requirement 100-240 V ±10%, 50-60 Hz
Operating voltage 90 V - 264 V
Power consuption** 115 V   230 V
Idle 23.1 W 0.40 A   24 W 0.28 A
1/8 of max output power @ 4 Ω 258.4 W 2.7 A   285.3 W 1.78 A
1/4 of max output power @ 4 Ω 554.4 W 5.24 A   549.2 W 2.84 A

Thermal
Operating temperature range 0° - 45° C - 32° - 113° F
Thermal dissipation** 115 V   230 V
Idle 78.9 BTU/h 19.9 kcal/h   81.9 BTU/h 20.6 kcal/h
1/8 of max output power @ 4 Ω 291.6 BTU/h 73.5 kcal/h   291.2 BTU/h 73.4 kcal/h
1/4 of max output power @ 4 Ω 527.1 BTU/h 132.8 kcal/h   509.4 BTU/h 128.4 kcal/h

AUDIO
Gain 26 dB 29 dB 32 dB 35 dB
Input sensitivity 0.4 V 2.84 V 2.0 V 1.42 V
Max input level 20 dBu 20 dBu 20 dBu 20 dBu
Frequency response 20 Hz - 20 kHz (±0.5 dB) @ 1 W, 8 Ω or (±2.5 dB) @ 32W, 70V lines / 65 W, 100V lines
S/N ratio > 109 dB (20 Hz - 20 kHz, A weighted)
Crosstalk separation <70 dB @ 1kHz
THD+N < 0.1% from 0.1 W to full power (typically <0.05%)
IMD < 0.05% from 0.1 W to full power (typically <0.05%)
Input impedance 20 kΩ balanced
Slew rate >50 V/μs @ 8Ω, input filter bypassed
Damping factor > 500 @ 20-100 Hz (Lo-Z)

DSP
DSP architecture TI C6000 DSP platform
AD Converter 24bit @ 48 kHz Tandem® architecture, 125 dB dynamic range
DA Converter 24bit @ 48 kHz Tandem® architecture, 117 dB dynamic range
Internal precision 32 bit floating point
Latency 2.5 ms fixed latency architecture
Input equalizer Raised-cosine, custom FIR, param. IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop hi/lo-pass
Output equalizer Linear phase (FIR), hybrid (FIR-IIR), Bessel: 6 dB/oct to 48 dB/oct (IIR)
Crossover Butterworth, Linkwitz-Riley
Delay up to 100 ms per output
Input EQ
Output EQ
Limiters Peak, RMS voltage, RMS current, TruePower™
Damping control Active DampingControl™, LiveImpedance™ measurement

Front panel
Indicators and Controllers 1 x LED - Status
1 x LED - Over-temperature protection
1 x LED bar - Signal level + CLIP
1 x LED bar - Signal level and over-temperature protection
1 x Knob - Level attenuator (continuous)
1 x Push-button - Setting operating parameters
1 x Push-button - Preset selector
1 x DIP switch - Toggle energy save on/off per channel pair
1 x Power switch -
Connectors
AC main 1 x IEC C20 connector - 20 A max (region-specific power cord provided)
Audio signal input 2 x 3 pin Phoenix MC 1.5/3-ST-3.81 - Signal input – MAIN
Alarm 1 x 12 pin Phoenix MC 1.5/12-ST-3.81 - Alarm connector
Remote command 1 x 4 pin Phoenix MC 1.5/4-ST-3.81 - Remote on/off switch and aux voltage
Network/data 1 x USB plug - USB connection
1 x Rj45 socket - RS485 data connection (non-DSP version)
1 x Rj45 socket - DANTE®

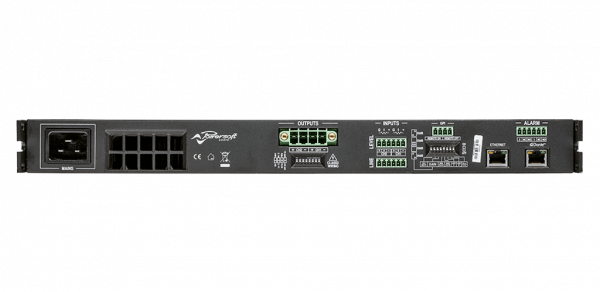

Rear panel
Indicators and Controllers 1 x DIP switch - Toggle lo/hi impedance connection
1 x DIP switch - Toggle 70V/100V distributed line nominal voltage
1 x DIP switch - Toggle High Pass Filter
1 x DIP switch - Toggle 35Hz/70Hz HPF cutting frequency
Audio
Amplifier Highly efficient Powersoft Class D circuitry
Communication
Wireless Standard IEEE 802.11 a,b,g,n,d, 2.4 and 5 GHz
Bluetooth
Wired Ethernet 100 Mbit/s, PoE, via internal RJ45 port
GUI
Web Browser On-board web server for mobile clients via Wi-Fi connection

Construction
Dimensions (L x H x W) 483 mm x 44.45 mm x 360 mm (19.0 in x 1.8 in x 14.2 in)
Weight 7 kg (15.4 lb)
