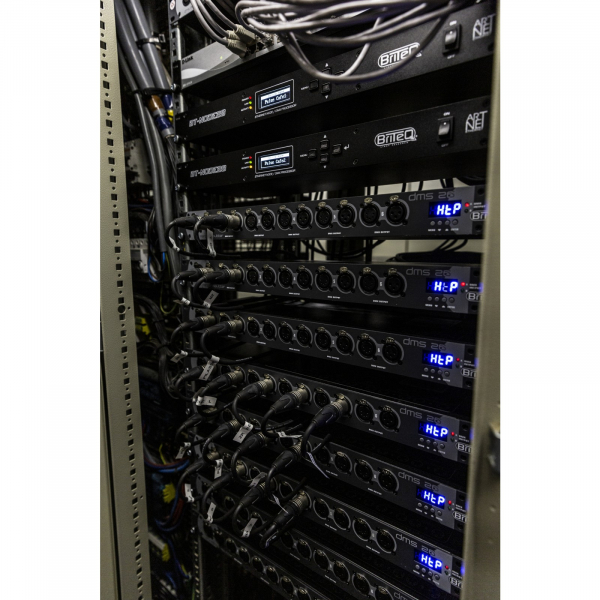

Briteq DMS-26 Merger Splitter Booster

2 DMX-inputs + 6 DMX-outputs, each equipped with 3pin and 5pin XLR-connectors.
The booster function analyses the incoming DMX-signal and builds it back up from scratch to make it perfect for further use.
The merger function combines 2 DMX-signals in different ways:
HTP: the highest value of 2 identical channels from 2 DMX-signals will have priority.
Backup: when the DMX-signal on input A fails, the DMX-signal in input B takes over immediately.
Merger: DMX-signals from 2 different controllers can be combined and send over 1 cable, you can choose the start address of the second controller.
The splitter function distributes the DMX-signal(s) from the input(s) over 6 identical outputs that are 100% isolated from each other: problems that occur on 1 output will not influence the other outputs!
The timing of the DMX-outputs can be adapted from 23ms to 45ms, increasing compatibility while connecting “slow" DMX-devices to “fast" DMX-controllers.
Output behavior can be selected when suddenly both DMX-inputs fail:
Null: no DMX signal on the outputs
Hold: keep the last DMX values on the outputs.
Clear: set the DMX values on all outputs to zero.
Easy setup via 4digit LED display



General : Dimensions (cm)	48.2 x 4.4 x 15.0 cm
General : Weight (kg)	2.92
General : Powerinput	AC 240V, 50Hz
General : Energy Label	No
General : Color	black
General : Display	LED
General : Fixation	19" rack mountable
General : RU	No
Control : programmable	No
Control : upgradable software	No
Connections : input	3 pin XLR, 5 pin XLR, IEC
Connections : output	3 pin XLR, 5 pin XLR
