Briteq BT-626/GER

Name: Briteq BT-626/GER
Brand: Briteq
SKU: C1333
Availability: OutOfStock

Professional 6 channel Dimmer / Switch pack for 19" rack mounting.

Cod Produs: C1333 Ai nevoie de ajutor? +40212317631

SERVICE PROPRIU Asigurăm service și mentenanță pentru toate produsele comercializate de noi!

TRANSPORT GRATUIT Gratuit la comenzi mai mari de 399 ron

25 ANI EXPERIENTA Avem peste 25 de ani de experienta si proiecte validate pe piata romaneasca.

Professional 6 channel Dimmer / Switch pack for 19" rack mounting
Max load 16A (3680W) per channel with automatic 16A circuit breakers
Suitable for both inductive and resistive loads
Can be used to dim incandescent lamps, halogen lamps, low volt halogen lamps with ballast and dimmable LED-lamps (load must be >100W).

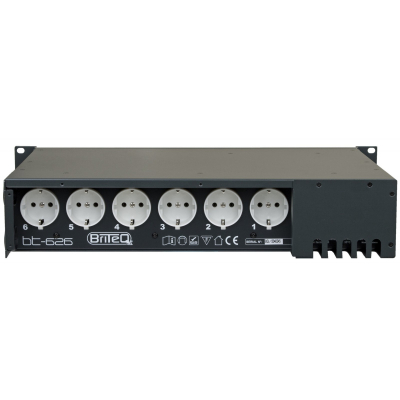

Outputs equipped with German mains sockets (see barcode sticker)
DMX (3p-XLR + RJ11) and analog 0/10V (dB9) inputs
Block or individual channel addressing (soft patch)
Switch/dimmer mode can be set individually for all channels
Control faders 0-100% for all channels (no external controller needed)
Preheat control to extend lamp life: 0-6%
Automatic phase/frequency tracking (45Hz to 63Hz) for improved dimming under difficult conditions.
LED display for monitoring of all functions, including internal temperature.
Mains input (200 ~ 240Vac):
- 3-phase/4wire: total max. load = 22kW
- Single phase/2wire: total max. load = 9,6kW
Intelligent thermo protection with automatic fan control.
Dimensions: 483x88x312mm (19"/2U)
Weight: 8kg
