Perfect for install market with configurations over Art-Net support and DHCP.
Complies to IEEE 802.3-2005 standard for fully compliant hi-speed Gigabit Ethernet over long cable lengths.
Integrated web interface with support for mobile devices.
NFC tag for easy website access on mobile devices.
The 4 DMX ports can all be configured as in or outputs:
Configured as input: normal mode
Configured as output: single, LTP, HTP or ZERO mode.
Multiple pre-defined presets available and custom presets.
RDM over Art-Net compatible.
All DMX ports are equipped with 3pin or 5pin Neutrik®
XLR-connectors (both versions available)
100% electrical isolation between all in/outputs: problems on 1 port will not influence the other ports.
MIDI bridge functionality via Ethernet coming soon.
100-240VAC 50/60Hz Neutrik®
TRUE-1 daisy chaining.
PoE class 0 input. From 36V to 57V

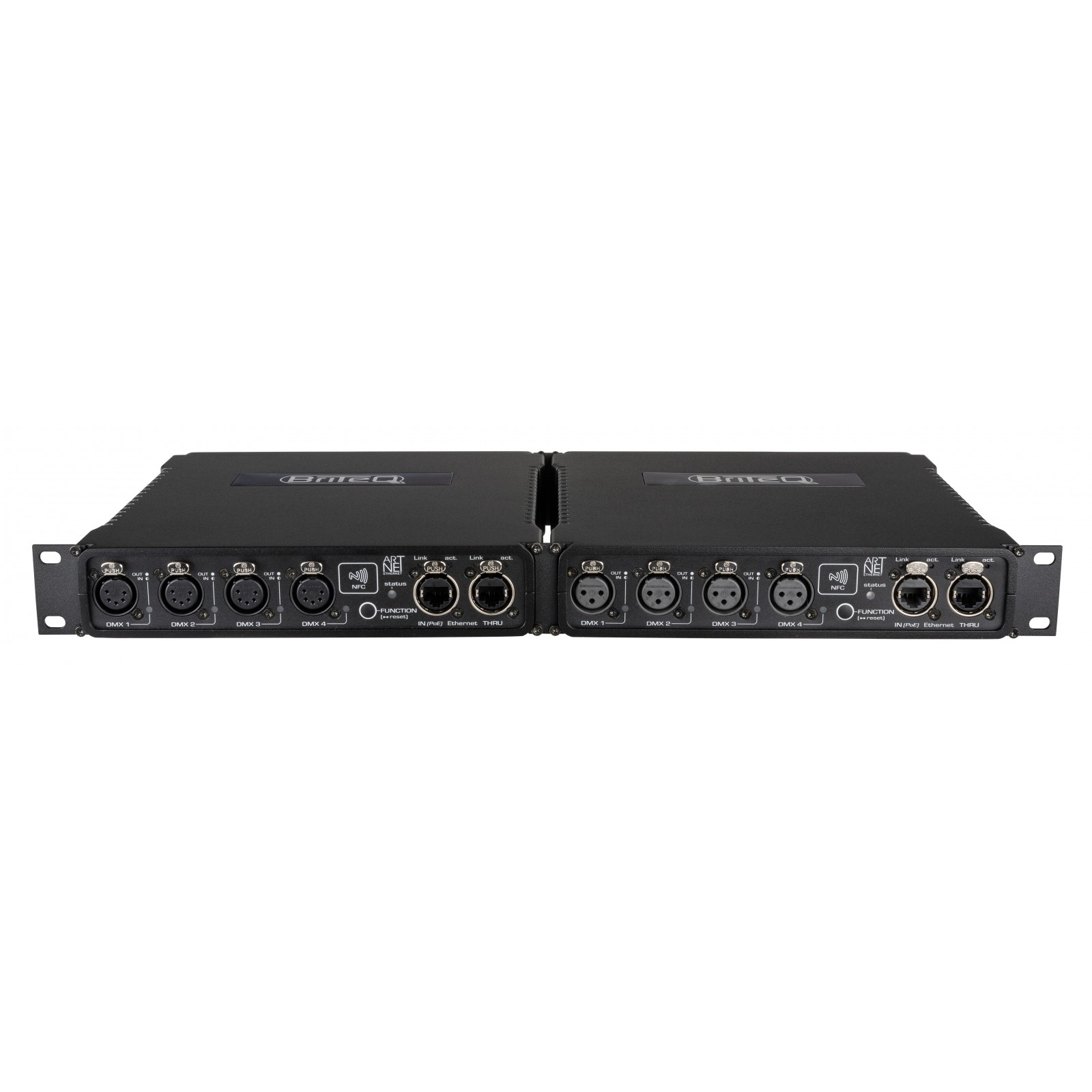

Housing ½ 19” diecast housing with different installation options:
1-unit fits 1U 19” rack (19” adapter included)
2-units fit together in a 1U 19" rack (adapters included)
Easy truss mounting with wall adapter (optional)

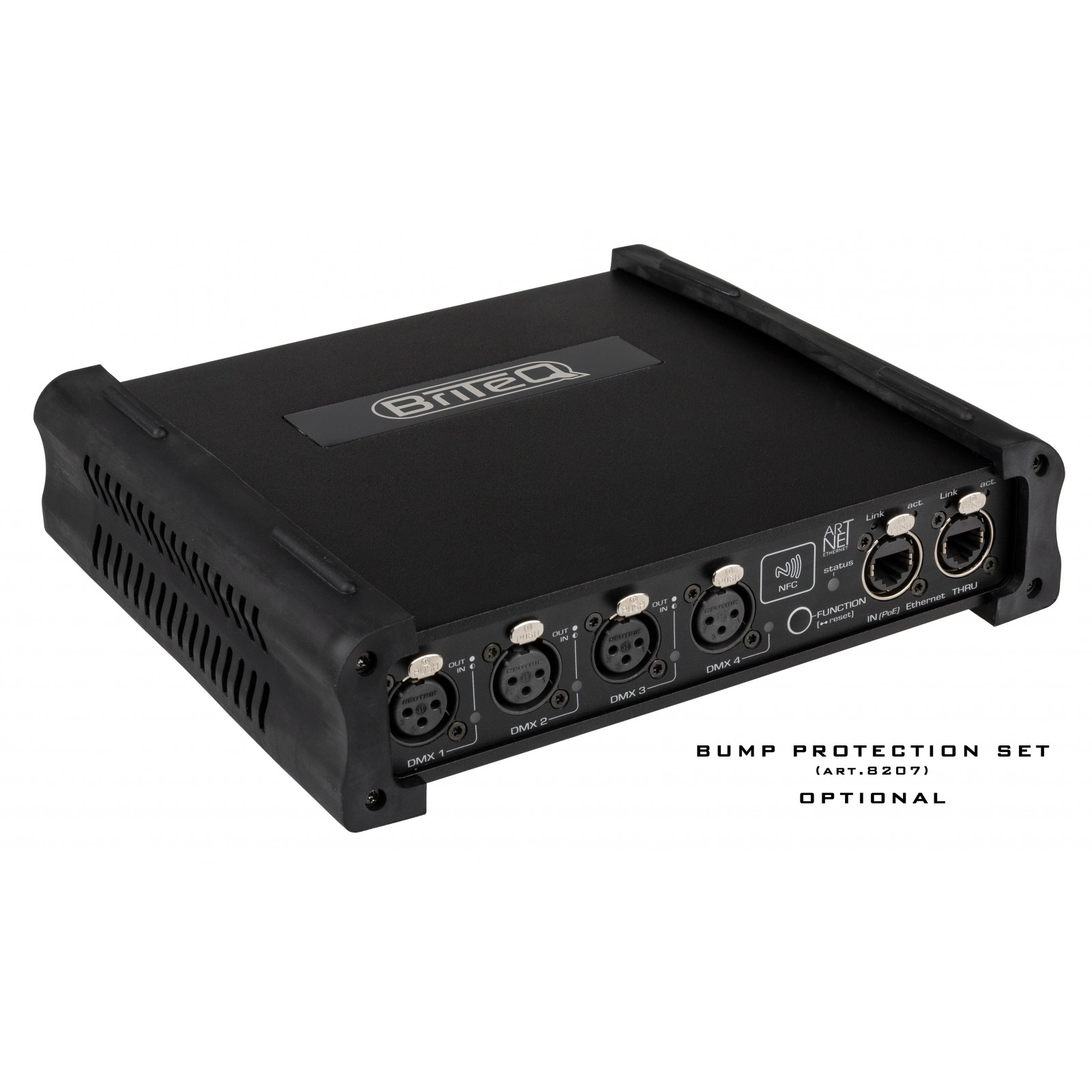

Strong rubber protection adapters for stage use (optional)
|General : Dimensions (cm)
||22.2 x 44 x 20.5
|General : Weight (kg)
|General : Powerinput
||AC 100 - 240V, 50/60Hz
|General : Energy Label
|General : Power consumption W
|General : Color
|General : Display
|General : Fixation
||19" rack mountable
|General : RU
|General : IP rating
|Control : programmable
|Control : upgradable software
|Control : maximum DMX channels
|Connections : input
||3 pin XLR, TRUE1 powerCON, midi, usb, artnet, RJ45, rdm
|Connections : output
||3 pin XLR, artnet, RJ45
