1024 output channels when used with a computer
512 output channels when used standalone without computer (max 1500 steps / 255 scenes)
4 dry contacts on PCB
16 bits channels management in standalone
30 minutes of Lighting, Audio and Video timeline synchronization with Pro DMX software

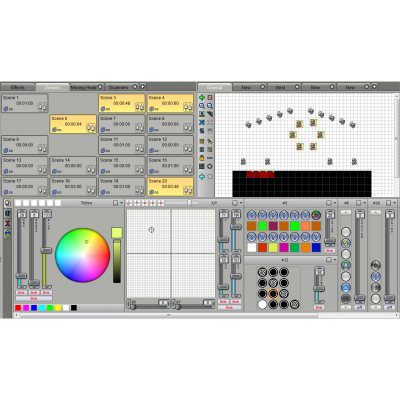

Works with the Chromateq Led Player and Pro DMX software. (included)
Strong Aluminium housing
Original Neutrik® 3-pin XLR output connectors
Extra double DMX connector terminal for fixed installations
USB cable included
Infra-Red receiver for the use with an optional IR remote control (in standalone mode)
General : Dimensions (cm) |
7 x 9 x 5 cm |
General : Weight (kg) |
0.5 |
General : Energy Label |
No |
General : Color |
black |
General : Display |
none |
General : IP rating |
indoor |
Control : programmable |
No |
Control : upgradable software |
No |
Control : maximum DMX channels |
1024 |
Connections : input |
usb |
Connections : output |
3 pin XLR, screw terminal block (dmx) |
