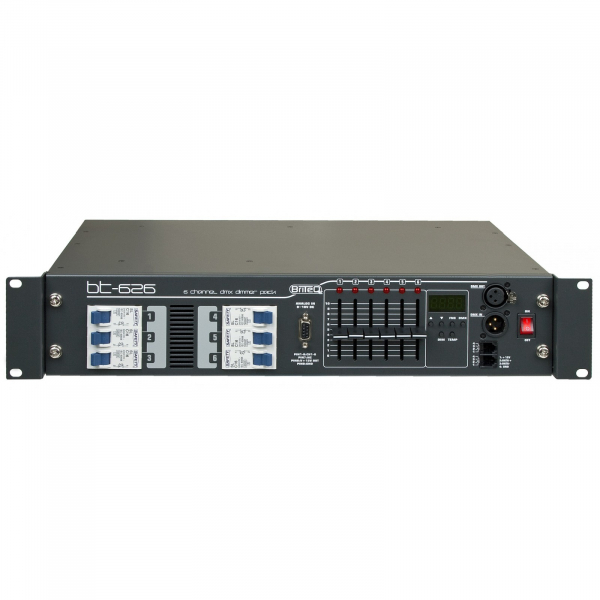

Briteq BT-626/GER

Briteq
Professional 6 channel Dimmer / Switch pack for 19" rack mounting.
Cod Produs: C1333 Ai nevoie de ajutor? +40212317631
  • Descriere
  • Review-uri (0)
  • Professional 6 channel Dimmer / Switch pack for 19" rack mounting
  • Max load 16A (3680W) per channel with automatic 16A circuit breakers
  • Suitable for both inductive and resistive loads
  • Can be used to dim incandescent lamps, halogen lamps, low volt halogen lamps with ballast and dimmable LED-lamps (load must be >100W).
  • Outputs equipped with German mains sockets (see barcode sticker)
  • DMX (3p-XLR + RJ11) and analog 0/10V (dB9) inputs
  • Block or individual channel addressing (soft patch)
  • Switch/dimmer mode can be set individually for all channels
  • Control faders 0-100% for all channels (no external controller needed)
  • Preheat control to extend lamp life: 0-6%
  • Automatic phase/frequency tracking (45Hz to 63Hz) for improved dimming under difficult conditions.
  • LED display for monitoring of all functions, including internal temperature.
  • Mains input (200 ~ 240Vac):
    • 3-phase/4wire: total max. load = 22kW
    • Single phase/2wire: total max. load = 9,6kW
  • Intelligent thermo protection with automatic fan control.
  • Dimensions: 483x88x312mm (19"/2U)
  • Weight: 8kg
