Briteq BT-626FRA Dimmer 6 canale

Name: Briteq BT-626FRA Dimmer 6 canale
Brand: Briteq
SKU: C1329
Price: 2850.00 RON
Availability: PreOrder

2.850,00 Lei

Professional 6 channel Dimmer / Switch pack for 19" rack mounting

Precomanda

Data de livrare: Vineri, 01.12.2023

Limita stoc

Cod Produs: C1329 Ai nevoie de ajutor? +40212317631 / +40729843861

SERVICE PROPRIU Asigurăm service și mentenanță pentru toate produsele comercializate de noi!

TRANSPORT GRATUIT Gratuit la comenzi mai mari de 399 ron

25 ANI EXPERIENTA Avem peste 25 de ani de experienta si proiecte validate pe piata romaneasca.

Professional 6 channel Dimmer / Switch pack for 19" rack mounting
Max load 16A (3680W) per channel with automatic 16A circuit breakers
Suitable for both inductive and resistive loads
Can be used to dim incandescent lamps, halogen lamps, low volt halogen lamps with ballast and dimmable LED-lamps (load must be >100W).

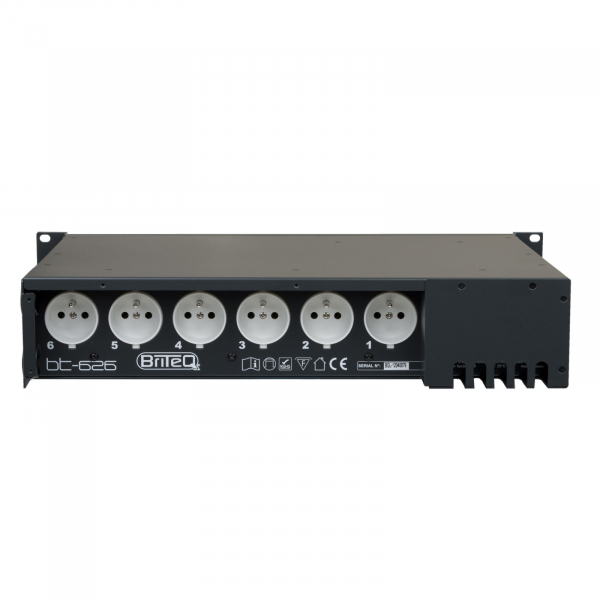

Outputs equipped with French mains sockets (see barcode sticker)
DMX (3p-XLR + RJ11) and analog 0/10V (dB9) inputs
Block or individual channel addressing (soft patch)
Switch/dimmer mode can be set individually for all channels
Control faders 0-100% for all channels (no external controller needed)
Preheat control to extend lamp life: 0-6%
Automatic phase/frequency tracking (45Hz to 63Hz) for improved dimming under difficult conditions.
LED display for monitoring of all functions, including internal temperature.
Mains input (200 ~ 240Vac):
- 3-phase/4wire: total max. load = 22kW
- Single phase/2wire: total max. load = 9,6kW
Intelligent thermo protection with automatic fan control.
Dimensions: 483x88x312mm (19"/2U)
Weight: 8kg

General : Application	DJ & Club, Stage & Rental, Theatre
General : Dimensions (cm)	48.3 x 8.8 x 31.2 cm
General : Weight (kg)	8.5
General : Powerinput	AC 240V, 50Hz
General : Energy Label	No
General : Color	black
General : Display	LED
General : Fixation	19" rack mountable
General : RU	No
General : IP rating	indoor
Control : manual	No
Control : Standalone	automatic
Control : programmable	No
Control : upgradable software	No
Control : maximum DMX channels	6
Connections : input	3 pin XLR
Connections : output	3 pin XLR, Schuko CEE 7/7
Brand	BRITEQ
EANCode	5420025646345
