Beam Briteq BTX-TITAN

The different effect wheels create dazzling effects:
1 color wheel with 13 carefully selected colors, including CTO & CTB-filters + white
1 gobo wheel with 14 static gobos + open
1 gobo wheel with 9 easily replaceable rotating gobos (glass + metal, OD: 15.8mm / IM: 12.5mm)
The 8 facet round + 6 facet linear prisms have separate rotation speed settings and can be mixed for stunning effects!
FROST-effect (WASH effect)
Motorized ZOOM + FOCUS with calibrated DMX-values
Accurate Dimmer/shutter for linear dimming and variable strobe effects
The 3-Phase MOONS' stepper motors assure very fast 540°/270° PAN/TILT movements with 8 or 16bit precision.
Unparalleled performance and processing speed thanks to the intensive use of FPGA technology.

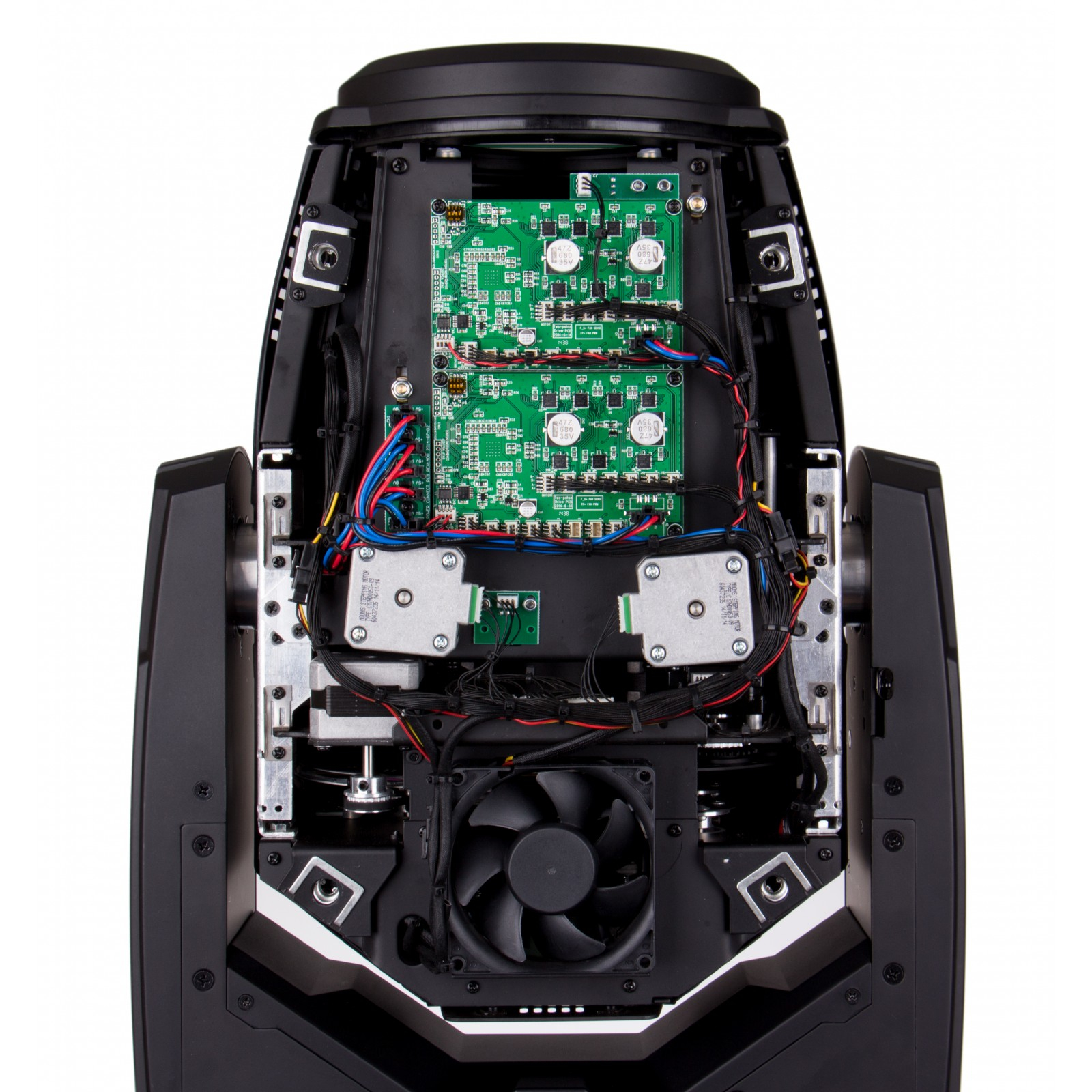

Modular setup for easy servicing and cleaning.
2.8" Color touch screen with automatic display rotation for easy and intuitive menu navigation !
3 Different DMX channel modes (16ch, 24ch & 25ch) for maximum flexibility
Easy firmware updates keep your machine up-to-date at all times (optional firmware updater needed)
Remote lamp on/off control

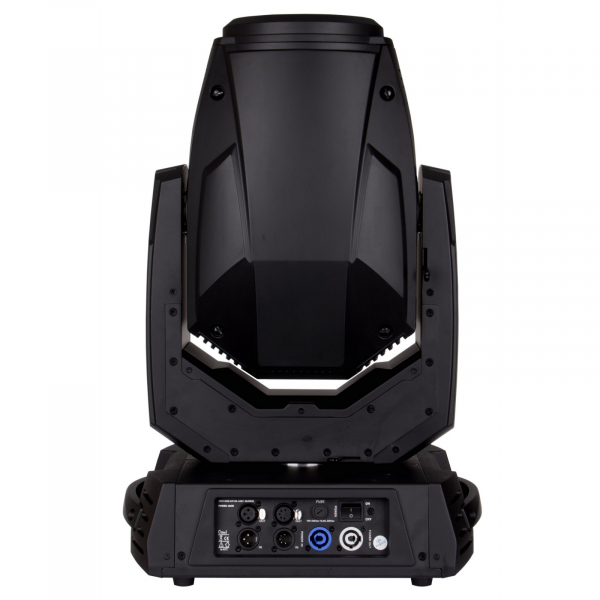

Neutrik 3pin & 5pin in/outputs for maximum flexibility in a professional environment
Neutrik PowerCON^® in/outputs: up to 16A can be daisy chained for easy installation
Equipped with omega brackets for fast installation.
Power consumption: only 400W



General : Application	DJ & Club, Stage & Rental
General : Dimensions (cm)	39.1 x 28.7 x 58.3 cm
General : Weight (kg)	22
General : Powerinput	AC 100 - 240V, 50/60Hz
General : Energy Label	No
General : Power consumption W	400
General : Color	black
General : Display	No
General : Fixation	included omega bracket
General : IP rating	indoor
Control : manual	Yes
Control : Master/Slave	No
Control : SMART-DMX	No
Control : Standalone	no
Control : programmable	No
Control : upgradable software	No
Control : maximum DMX channels	25
Light : lamp socket	none
Light : lamp	LED
Light : colors	Red, Green, Blue, UV
Light : mix colors	No
Light : functions	motorized focus, motorized zoom, 8 facet round prism, 6 facet linear prism, motorized frost
Light : fixed gobos	14
Light : rotating gobos	9
Light : min. refresh rate (kHz)	No
Light : max. refresh rate (kHz)	No
Connections : input	3 pin XLR, 5 pin XLR, PowerCon®
Connections : output	3 pin XLR, 5 pin XLR, PowerCon®
Brand	BRITEQ
EANCode	5420025643788
