Briteq BT-PROFILE160LED ENGINE

A powerful LED profile spot based on high power COB LED technology.
It’s a perfect replacement for the halogen units with high power consumption!
Rugged die-cast and extruded aluminum construction.
Optional Gobo Holder and Iris available.
For your convenience the projector is sold in separate parts:
BT-PROFILE160/LED ENGINE
Equipped with a high power 160W COB LED, 3200K color temp.

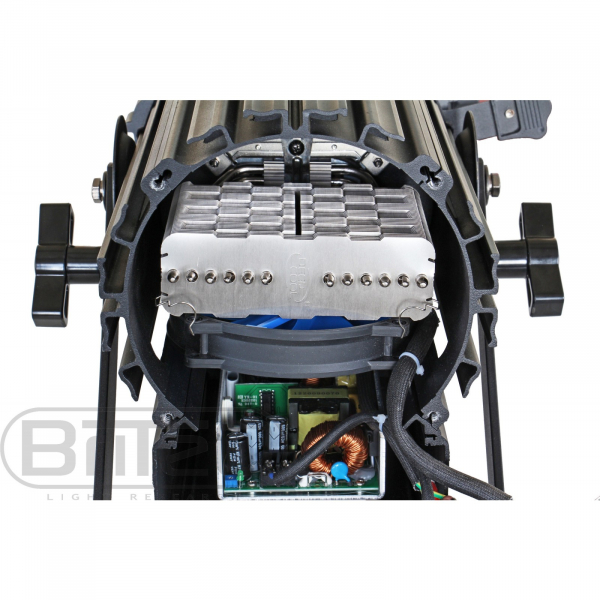

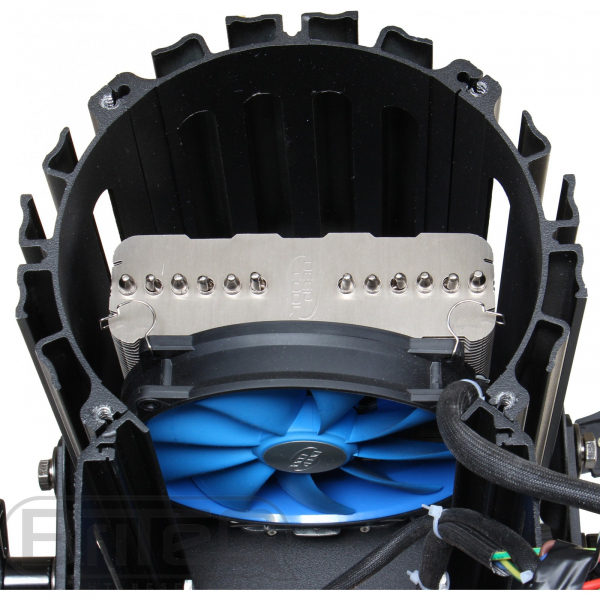

Extremely silent cooling system using heat pipe technology
Compatible with ETC Source Four-optics

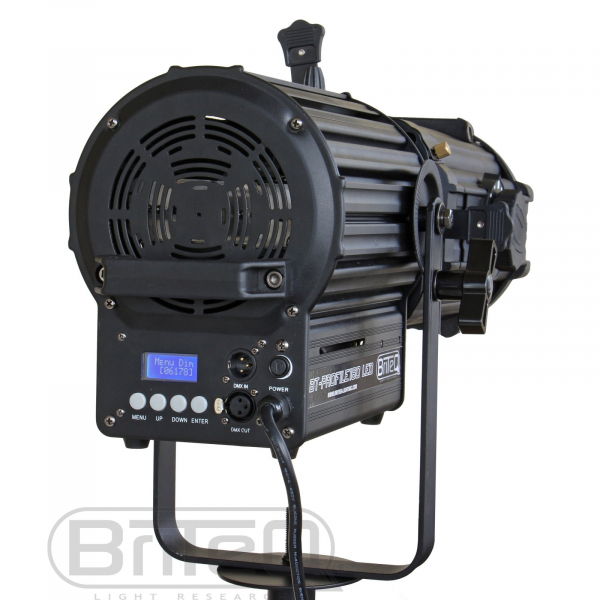

LCD-screen for easy settings.
3 working modes:
Manual 16bit dimmer (can be adjusted on the projector, 65535 dimmer steps)
DMX 8bit dimming (1fader)
DMX 16bit dimming (2faders: coarse + fine)
Different dimmer curves:
Linear
Square law
Inverse square law
S-curve
Insulated rear handle
BT-PROFILE160/OPTIC
This is the optical part which is sold separately.
2 different optics are available:

•

“BT-PROFILE160/OPTIC 15-30” (order code: 6001): 15°-30° zoom range
“BT-PROFILE160/OPTIC 25-50” (order code: 6002): 25°-50° zoom range
See linked products for more information on the optical units



General : Application	Stage & Rental, Theatre
General : Weight (kg)	6.1
General : Powerinput	AC 240V, 50Hz
General : Energy Label	No
General : Power consumption W	170
General : Color	black
General : Display	LCD
General : Fixation	optional standard clamp
General : IP rating	indoor
Control : manual	Yes
Control : Master/Slave	No
Control : SMART-DMX	No
Control : Standalone	no
Control : programmable	No
Control : upgradable software	No
Control : maximum DMX channels	2
Light : lamp socket	none
Light : lumen	11566
Light : lamp	LED
Light : min. color temperature (K)	3200
Light : max. color temperature (K)	3200
Light : CRI	90
Light : colors	Warm white
Light : mix colors	No
Light : min. refresh rate (kHz)	No
Light : max. refresh rate (kHz)	No
Connections : input	3 pin XLR, Schuko CEE 7/7
Connections : output	3 pin XLR
Brand	BRITEQ
EANCode	5420025660006
