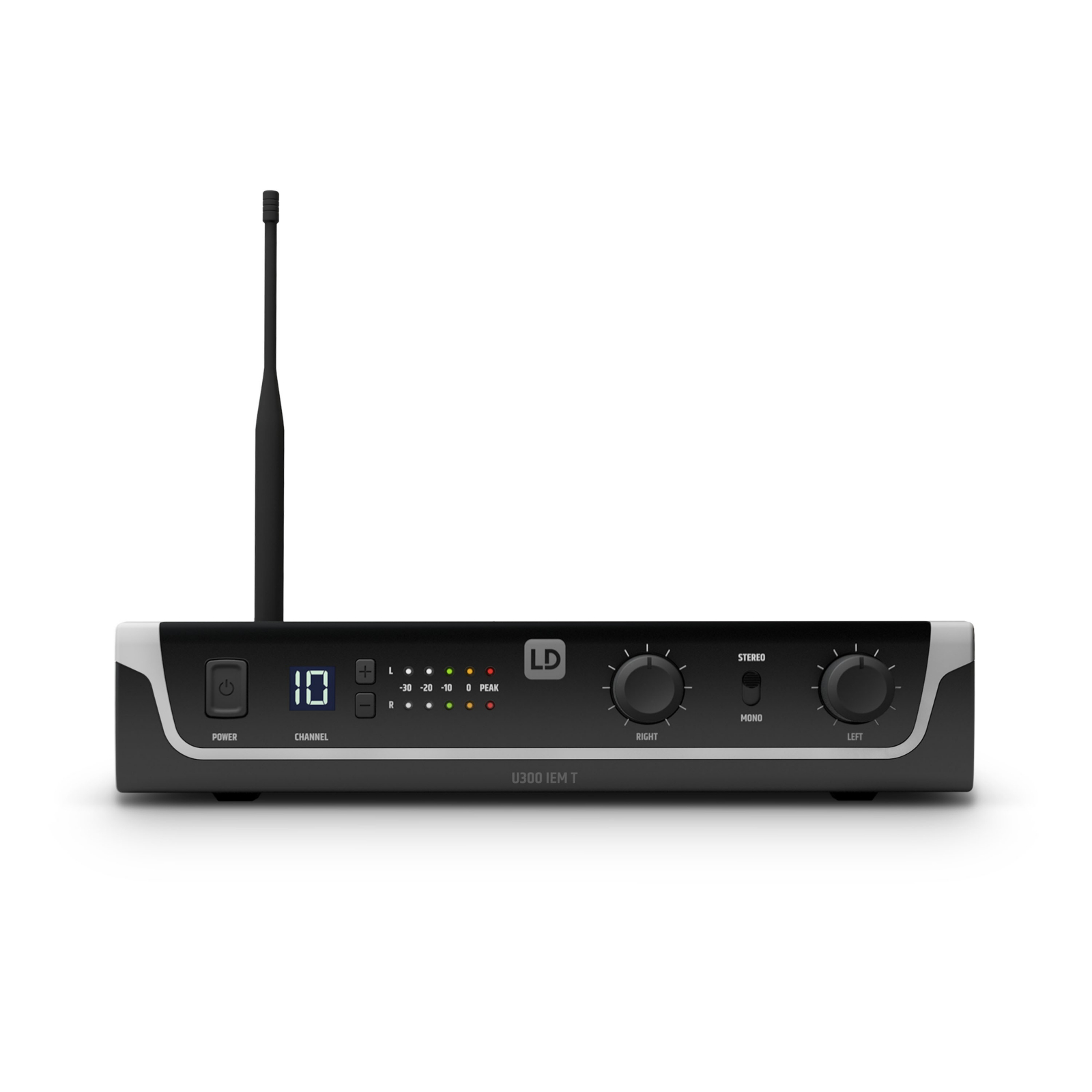

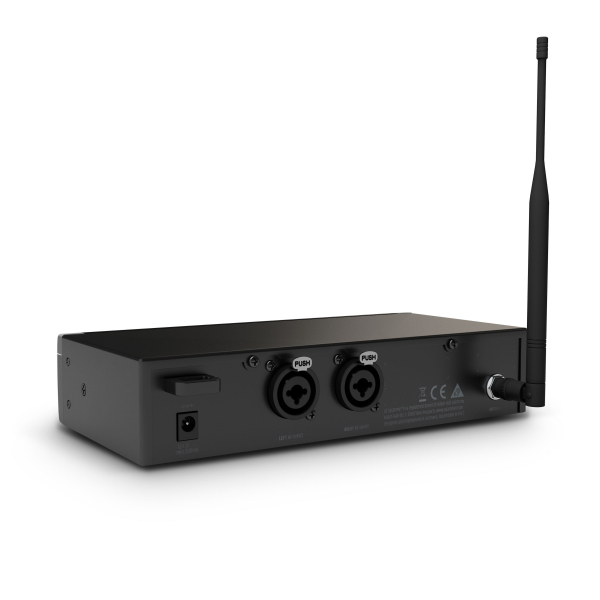

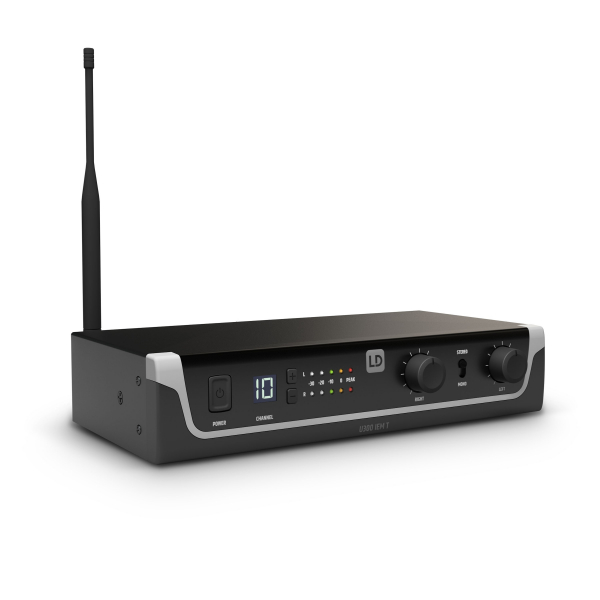

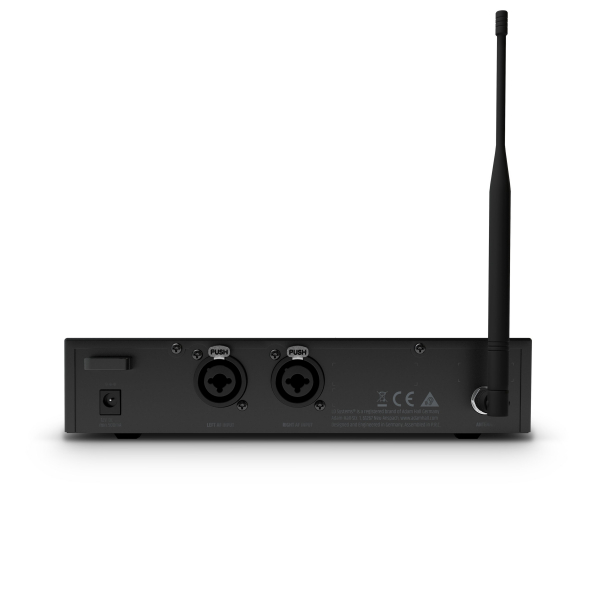

LD Systems U308 IEM T

The new LD Systems U300 IEM In-Ear Monitoring-System with 96 UHF channels offers outstanding sound quality and a large dynamic range in the 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz + 863 MHz - 865 MHz, 470 MHz - 490 MHz, or 514 MHz - 542 MHz. The system toggles between mono and stereo mode for perfect monitoring for live musicians, actors or speakers. A built-in limiter ensures even, distortion-free sound reproduction with a frequency response of 50 Hz - 16 kHz and stands out because of its high signal-to-noise ratio and low total harmonic distortion. The LD U300 IEM permits simultaneous operation of up to 6 systems. Both transmitter and receiver feature multifunctional displays that show all important system information. With high quality batteries, it is possible to attain running times of 10 hours and more. * license-free: ISM band license-free in Europe, please check duplex gap for your specific country.

Product type	In-ear Monitoring Accessories
Type	Transmitters
Transmission frequency range	823 - 832 MHz , 863 - 865 MHz
Channels	12
Modes of operation	mono/stereo
Transmission method	FM, mono/stereo
Rated HF output power	10 mW
Frequency response	50 - 16.000 Hz
Signal-to-noise ratio	90 dB
Total Harmonic Distortion (THD)	<0,5%
Dynamic range	88 dB
Inputs	2
Input connectors	6.3 mm jack , XLR
Input impedance (kOhms)	8.5 kOhm
Input sensitivity	-4.5 dbu
Antenna connector	BNC
Controls	input level , Mono/stereo switch , Power On/Off
Indicators	LC display
Power consumption	1.7 W
Operating voltage	12 - 18 V DC
Width	212 mm
Height	43 mm
Depth	123 mm
Weight	0,66 kg
Accessories (included)	19" Rack mount kit , BNC-Antenna , Power supply
