Powersoft Duecanali 804

Powersoft
7.698,00 Lei
Compact and light weight, it can be used as an addition to existing systems to enhance audio reproduction in small to medium sized areas. As a standalone unit, the Duecanali 804 amplifier platform shines with outstandingly low power consumption and thermal dissipation.
Precomanda

Data de livrare: Sambata, 01.06.2024

Limita stoc
Precomanda
Cod Produs: C1246 Ai nevoie de ajutor? +40212317631
Adauga la Favorite Cere informatii
  • Descriere
  • Review-uri (0)

Power supply

  • Universal switch mode power supply up to 400VAC tolerant with Power Factor Correction
  • Patented output filter with ripple cancellation network
  • Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
  • Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket

Protections
Fully protected circuit design with:

  • AC protection: shut down power supply when AC mains voltage is outside operating range
  • Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
  • VHF protections: protects the loudspeakers against non-audible, strong, non-musical high-frequency signals
  • Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
  • Long-term limiter: protects the loudspeaker against steady long-term rms (non-audio) signals reducing maximum output
  • Thermal protection: output stages operating temperature up to 80 °C (176 °F)
  • Temperature controlled continuous variable speed fan, front to back airflow

General

  • Fixed frequency switchmode output stage for high-grade sound accuracy
  • Compact 1 RU for reduced rack cost and space
  • Lightweight - for easier racking and shipping: 7 kg (15.4 lbs)
  • Standard Phoenix connectors: analog and digital input, audio outputs, alarms and GPIO
  • Remotely dimmable inputs per channel

Loudspeaker system configuration

  • Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
  • Switchable 35Hz / 70Hz high pass filter per channel
  • Mixed configuration with Lo-Z/Hi-Z systems possible
  • Bridged mode low impedance per channel pair

Alarms and GPI/O

  • General Purpose Input/Output alarm interfaces:
    • dangerous DC in the output power signal
    • thermal stress
  • Configurable alarm contact NC/NO per channel
  • Remote ON/OFF switch

Remote Control & Monitoring

  • Via Software:
    • Attenuation (from 0 dB to 26 dB)
    • Max output voltage
    • Output and gain reduction metering
    • Diagnostics (temperature, fans, …)
  • Via Hardware:
    • Attenuation (from 0 dB to 26 dB)
    • High Pass Filter (35 Hz, 70 Hz)
    • LoZ/HiZ/70V/100V output selection
    • Gain (from 26 dB to 35 dB)

Number of channels 2

Output power Single channel mode Distributed line* Bridge mode
  2 Ω 4 Ω 8 Ω   70V 100V 4 Ω 8 Ω
  500 W 400 W 400 W   400 W 400 W 1000W 800W
Max output voltage / current 80 Vpeak / 39 Apeak

AC Main Power
Power supply Universal, regulated switch mode with PFC
Nominal power requirement 100-240 V ±10%, 50-60 Hz
Operating voltage 60 V - 264 V
Power consuption** 115 V   230 V
Idle 25.6 W 0.38 A   24.7 W 0.23 A
1/8 of max output power @ 4 Ω 150 W 1.4 A   149 W 0.92 A

Thermal
Operating temperature range 0° - 45° C - 32° - 113° F
Thermal dissipation** 115 V   230 V
Idle 87 BTU/h 21.9 kcal/h   84 BTU/h 21.2 kcal/h
1/8 of max output power @ 4 Ω 171 BTU/h 43.1 kcal/h   168 BTU/h 42.3 kcal/h

AUDIO
Gain 26 dB 29 dB 32 dB 35 dB
Input sensitivity 2.84 V 2.01 V 1.42 V 1.01 V
Max input level 20 dBu 20 dBu 20 dBu 20 dBu
Frequency response 20 Hz - 20 kHz (±0.5 dB) @ 1 W, 8 Ω or (±2.5 dB) @ 32W, 70V lines / 65 W, 100V lines
S/N ratio > 106 dB (20 Hz - 20 kHz, A weighted)
Crosstalk separation <70 dB @ 1kHz
THD+N < 0.1% from 0.1 W to full power (typically <0.05%)
IMD < 0.05% from 0.1 W to full power (typically <0.05%)
Input impedance 20 kΩ balanced
Slew rate > 50 V/μs @ 8Ω, input filter bypassed
Damping factor > 500 @ 20-100 Hz (Lo-Z)

Front panel
Indicators and Controllers 1 x LED - Status
1 x LED - Over-temperature protection
1 x LED bar - Signal level + CLIP
1 x LED bar - Signal level and over-temperature protection
1 x Knob - Level attenuator (continuous)
1 x Push-button - Setting operating parameters
1 x Push-button - Preset selector
1 x DIP switch - Toggle energy save on/off per channel pair
1 x Power switch -
Connectors
AC main 1 x IEC C20 connector - 20 A max (region-specific power cord provided)
Audio signal input 2 x 3 pin Phoenix MC 1.5/3-ST-3.81 - Signal input – MAIN
Alarm 1 x 12 pin Phoenix MC 1.5/12-ST-3.81 - Alarm connector
Remote command 1 x 4 pin Phoenix MC 1.5/4-ST-3.81 - Remote on/off switch and aux voltage
Network/data 1 x USB plug - USB connection
1 x Rj45 socket - RS485 data connection (non-DSP version)
1 x Rj45 socket - DANTE®

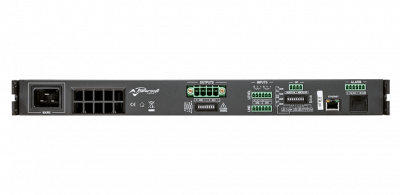

Rear panel
Indicators and Controllers 1 x DIP switch - Toggle lo/hi impedance connection
1 x DIP switch - Toggle 70V/100V distributed line nominal voltage
1 x DIP switch - Toggle High Pass Filter
1 x DIP switch - Toggle 35Hz/70Hz HPF cutting frequency
Audio
Amplifier Highly efficient Powersoft Class D circuitry

Construction
Dimensions (L x H x W) 483 mm x 44.45 mm x 360 mm (19.0 in x 1.8 in x 14.2 in)
Weight 7 kg (15.4 lb)
