Caracteristici tehnice:
Product Type Class D Amplifier with DSP
Frequency Response 20Hz - 20kHz (+0 / -1dB)
Amplifier Technology Class D
Number of Amplifier Channels 4 Channels
Amplifier Power - Stereo 8Ω 4 x 250W
Amplifier Power - Stereo 4Ω 4 x 500W
Amplifier Power - Bridge 8Ω 2 x 1000W
Amplifier Power - 100V 2 x 1000W Amplifier Gain 34dB±0.5dB
Speaker Output 4Ω - 16Ω | 100V
Damping Factor >180
THD+N <0.15%
SNR (Signal to Noise Ratio) >95dB
Crosstalk >50dB
Input Sensitivity 0.9V - 1.1V (+0 / -1dBv)
Input Impedance Balanced: 20kΩ | Unbalanced: 10kΩ
DSP Technology 4 IN x 4 OUT - 32bit | 192kHz DSP
Latency 0.66ms
DSP Adjustable Parameters PEQ, HPF, LPF, HSF, LSF, Compressor, Gate, Level, Delay, Polarity, Mute
Delay Adjustment 62.4ms / 21.42m per Channel

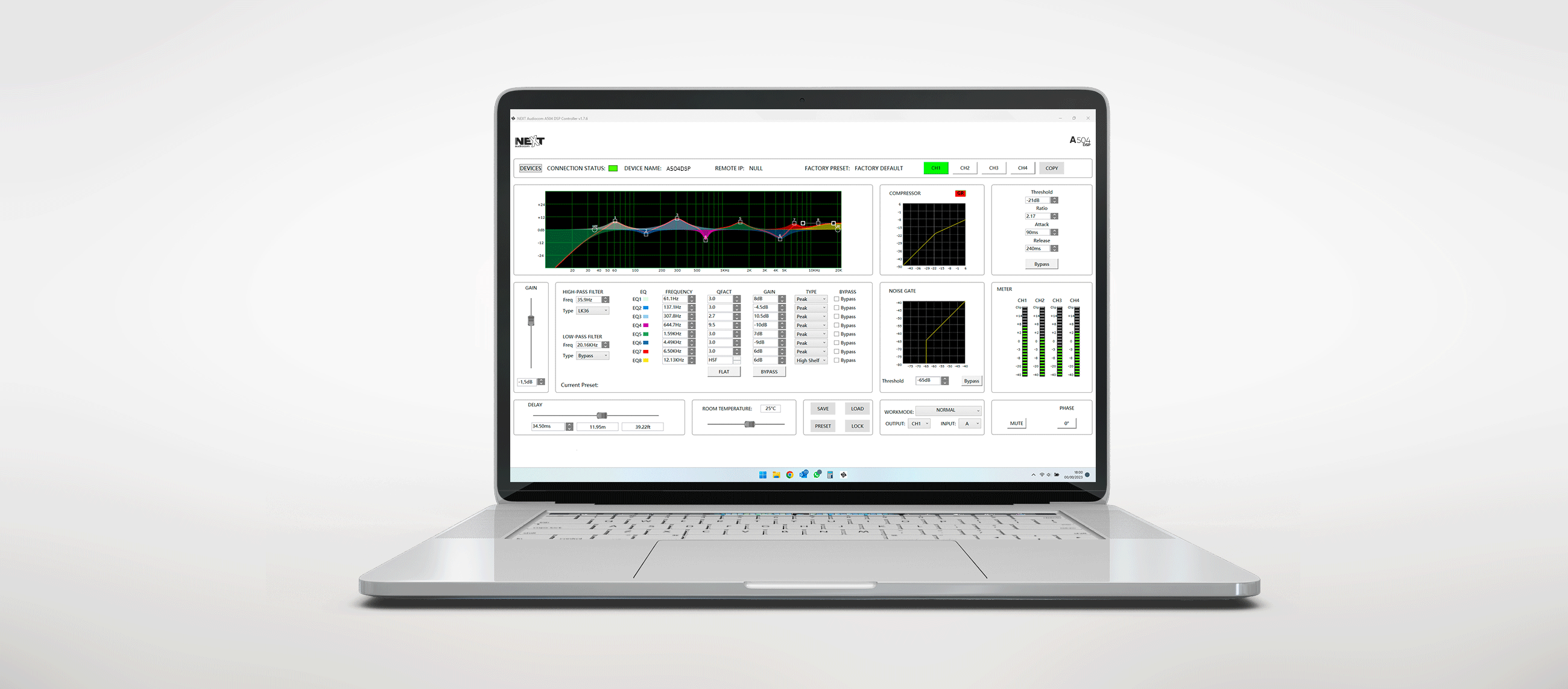

Control Type On the Amplifier Encoder and LCD | Via USB and Suplied Software "A504 DSP Controller"
Audio Signal Inputs Analog Audio

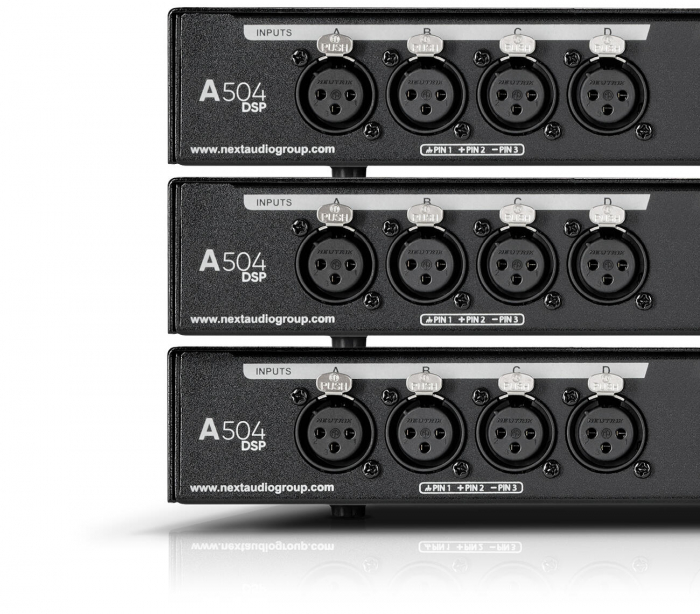

Input Connectors 4 x Neutrik XLR
Audio Signal Outputs None
Output Connectors None

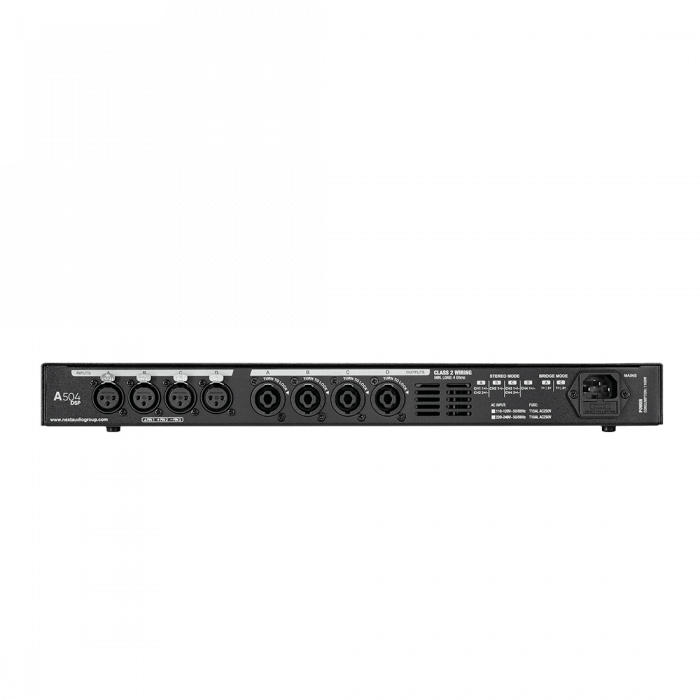

Speakers Output Connectors 4 x Neutrik NL4
Protections Full short circuit, open circuit, thermal, ultrasonic, and RF protection stable into reactive or mismatched loads, turn ON/OFF, muting, tried crowbar
Operating Temperature Range 0ºC - 40ºC
Cooling Type Speed Controlled Fan
Power Supply Switching Mode Power Supply (SMPS)
Power Input AC 110V - 120V | AC 220V - 240V 50Hz/60Hz ±10% Mains Connector Standard IEC socket
Power Consumption 1100W
Fittings 1U 19" Rack
Dimensions (WxHxD) 483 x 44 x 290mm
Net Weight 6kg
Shipping Weight 7.2kg
