The 8 DMX ports can all be configured as in or outputs:
Configured as input: normal or backup mode
Configured as output: single, LTP, HTP, RDM or zero mode
You can store all your personal settings and routing options to the different user memories.
Multiple pre-defined routing options available:
4 DMX inputs with 4 local clone outputs DMX and ArtNet output
8 DMX outputs from ArtNet input, with Backup line possibilities
Different merger combinations in both directions:
Combine DMX in + ArNet universe to Artnet or a physical DMX output (LTP or HTP)
Combine 2 DMX inputs to ArtNet (LTP or HTP)
Multiple mode DMX splitter modes:
One 1 to 7 splitter: 1 DMX input to 7 isolated DMX outputs
Two individual 2 to 3 splitters: each with 1 DMX input to 3 isolated DMX outputs
100% electrical isolation between all in/outputs: problems on 1 port will not influence the other ports.
Easy setup with OLED LCD display
Frame rate of each port can be adapted from 10ms to 40ms to increase compatibility while connecting “slow" DMX-devices to “fast" DMX-controllers.

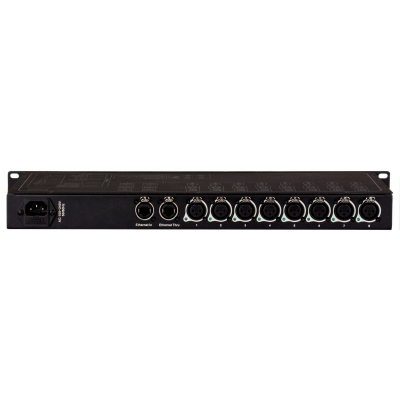

All DMX ports are equipped with
Neutrik 3pin XLR-connectors.
Two 10/100Mbps Ethernet ports (Neutrik RJ45 Ethercon connectors)
To increase reliability the built-in Ethernet switch has an
automatic bypass function to make sure that the network stays fully operational in case of hardware failure.
General : Dimensions (cm) |
48;3 x 4.4 x 15 cm |
General : Weight (kg) |
2.92 |
General : Powerinput |
AC 100 - 240V, 50/60Hz |
General : Energy Label |
No |
General : Power consumption W |
7 |
General : Color |
black |
General : Display |
LCD |
General : Fixation |
19" rack mountable |
General : RU |
1U |
General : IP rating |
indoor |
Control : programmable |
No |
Control : upgradable software |
No |
Control : maximum DMX channels |
8 |
Connections : input |
3 pin XLR, IEC, artnet, RJ45 |
Connections : output |
3 pin XLR, artnet, RJ45 |
